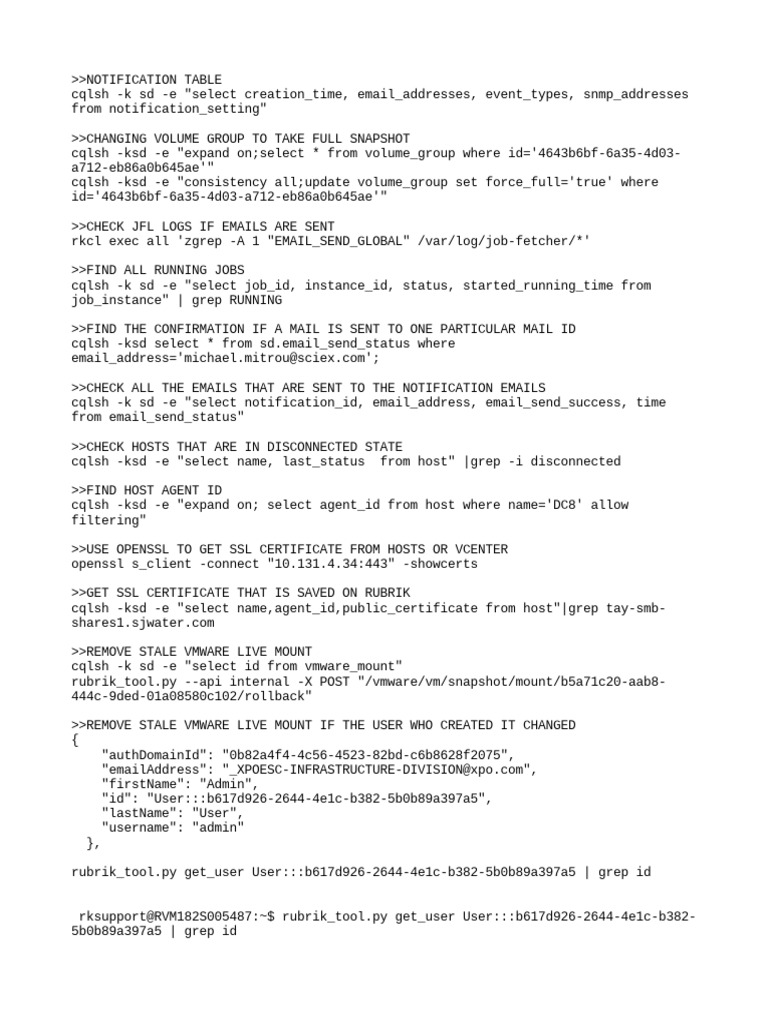

>>NOTIFICATION TABLE

cqlsh -k sd -e "select creation_time, email_addresses, event_types, snmp_addresses


from notification_setting"

>>CHANGING VOLUME GROUP TO TAKE FULL SNAPSHOT


cqlsh -ksd -e "expand on;select * from volume_group where id='4643b6bf-6a35-4d03-
a712-eb86a0b645ae'"
cqlsh -ksd -e "consistency all;update volume_group set force_full='true' where
id='4643b6bf-6a35-4d03-a712-eb86a0b645ae'"

>>CHECK JFL LOGS IF EMAILS ARE SENT


rkcl exec all 'zgrep -A 1 "EMAIL_SEND_GLOBAL" /var/log/job-fetcher/*'

>>FIND ALL RUNNING JOBS


cqlsh -k sd -e "select job_id, instance_id, status, started_running_time from
job_instance" | grep RUNNING

>>FIND THE CONFIRMATION IF A MAIL IS SENT TO ONE PARTICULAR MAIL ID


cqlsh -ksd select * from sd.email_send_status where
email_address='michael.mitrou@sciex.com';

>>CHECK ALL THE EMAILS THAT ARE SENT TO THE NOTIFICATION EMAILS
cqlsh -k sd -e "select notification_id, email_address, email_send_success, time
from email_send_status"

>>CHECK HOSTS THAT ARE IN DISCONNECTED STATE


cqlsh -ksd -e "select name, last_status from host" |grep -i disconnected

>>FIND HOST AGENT ID


cqlsh -ksd -e "expand on; select agent_id from host where name='DC8' allow
filtering"

>>USE OPENSSL TO GET SSL CERTIFICATE FROM HOSTS OR VCENTER


openssl s_client -connect "10.131.4.34:443" -showcerts

>>GET SSL CERTIFICATE THAT IS SAVED ON RUBRIK


cqlsh -ksd -e "select name,agent_id,public_certificate from host"|grep tay-smb-
shares1.sjwater.com

>>REMOVE STALE VMWARE LIVE MOUNT


cqlsh -k sd -e "select id from vmware_mount"
rubrik_tool.py --api internal -X POST "/vmware/vm/snapshot/mount/b5a71c20-aab8-
444c-9ded-01a08580c102/rollback"

>>REMOVE STALE VMWARE LIVE MOUNT IF THE USER WHO CREATED IT CHANGED
{
"authDomainId": "0b82a4f4-4c56-4523-82bd-c6b8628f2075",
"emailAddress": "_XPOESC-INFRASTRUCTURE-DIVISION@xpo.com",
"firstName": "Admin",
"id": "User:::b617d926-2644-4e1c-b382-5b0b89a397a5",
"lastName": "User",
"username": "admin"
},

rubrik_tool.py get_user User:::b617d926-2644-4e1c-b382-5b0b89a397a5 | grep id

rksupport@RVM182S005487:~$ rubrik_tool.py get_user User:::b617d926-2644-4e1c-b382-


5b0b89a397a5 | grep id
"id": "User:::b617d926-2644-4e1c-b382-5b0b89a397a5",

cqlsh -k sd -e "CONSISTENCY ALL; update vmware_mount set owner_id='297c4619-16af-


404d-ab0c-66d101949e06_468dbb4c-d4f4-4e78-8ab9-4b89915a47b9' where id='e3d810b7-
ed40-4229-bb5e-328f78e5644d'"

>>FULL BACKUP FOR VOLUME GROUP


rubrik_tool.py --api internal -X PATCH -d "{\"forceFull\": true}"
"/volume_group/VolumeGroup:::2f83983c-f2fe-463c-8387-6f21788cb184"
cqlsh -ksd -e "expand on;select id from volume_group where force_full='true'"

>>CHANGE THE STATE OF ETHERNET PORT ON NODE TO UP OR DOWN


sudo ip link set dev eth2 down

>>CHANGE THE SPEED ON ETHERNET PORT TO 10GBPS AND TURN OFF AUTO NEGOTIATION
sudo ethtool -s eth3 speed 10000 duplex full autoneg off
sudo ethtool -s eth2

>>ADD NUTANIX VERSION SUPPORT TO REGEX


rubrik_tool.py get_config nutanix nutanixOsVersionRegexCheck
rubrik_tool.py update_config nutanix nutanixOsVersionRegexCheck "^(5\.(18|17|16|15|
11|10|9|8|6|5|1\.[1-5])(\\..*)?|2017\..*|2018\.0[1-5]\.[0-9]{2})$" | grep
nutanixOsVersionRegexCheck
"nutanixOsVersionRegexCheck": "^(5\\.(18|17|16|15|11|10|9|8|6|5|1\\.[1-5])
(\\..*)?|2017\\..*|2018\\.0[1-5]\\.[0-9]{2})$",

>>CHECK RBS AGENT TIMEOUT VALUE


rkcl exec all
"/opt/rubrik/src/cpp/build/current/rba/agentserver/agent_server_client_main --
logtostderr --operation get_flag --flag_name rba_socket_recv_timeout"
rkcl exec all
"/opt/rubrik/src/cpp/build/current/rba/agentserver/agent_server_client_main --
logtostderr --operation get_flag --flag_name rba_socket_send_timeout"

sudo /opt/rubrik/src/cpp/build/current/rba/client/agent_client_main --
ssl_priv_key /var/lib/rubrik/certs/cluster.pem --ssl_pub_key
/var/lib/rubrik/certs/cluster.crt --operation discover --logtostderr --host
PRYFSC01.pryorcashman.com

>>CHANGE TIMEOUT VALUES FOR RBA, VDI.

rubrik_tool.py update_config mssql enableVdi true | grep enableVdi


rubrik_tool.py update_config mssql vdiRestoreTimeoutInSeconds 4800 | grep
vdiRestoreTimeoutInSeconds
rubrik_tool.py update_config mssql vdiDataTransferTimeoutInSeconds 4800 | grep
vdiDataTransferTimeoutInSeconds
rubrik_tool.py update_config mssql vdiSessionExpirationInSeconds 4800 | grep
vdiSessionExpirationInSeconds
rubrik_tool.py update_config mssql vdiTimeoutInSeconds 720 | grep
vdiTimeoutInSeconds
rkcl exec all
"/opt/rubrik/src/cpp/build/current/rba/agentserver/agent_server_client_main --
logtostderr --operation set_flag --flag_name rba_socket_recv_timeout --flag_value
1800"
rkcl exec all
"/opt/rubrik/src/cpp/build/current/rba/agentserver/agent_server_client_main --
logtostderr --operation set_flag --flag_name rba_socket_send_timeout --flag_value
1800"

sudo /opt/rubrik/src/cpp/build/current/rba/client/agent_client_main --
ssl_priv_key /var/lib/rubrik/certs/cluster.pem --ssl_pub_key
/var/lib/rubrik/certs/cluster.crt --operation discover --logtostderr --host ATL-HV-
01.tsged.com

>>GET ALL RUNNING JOBS TO A CSV FILE


sudo cqlsh -k sd -e "copy job_instance (job_id, instance_id, start_time,
status,node_id) to 'job_instance.csv'"
grep -i failed job_instance.csv
>>>FIND SNAPPABLE ID OF THE UPLOAD JOB
sudo -i QuicksilverTool.sh -cmd getConfig -jobInstanceId UPLOAD_7a67ebd0-4465-461a-
aa41-adc6d8a21017:::219 | grep 'snapshotSpecToUploadOpt' | jq '.'

>>TEST SUPPORT TUNNEL CONNECTION


curl -vvk https://proxy.rubrik.com:443
sudo ssh -S /var/lib/rubrik/tunnel.control -p 10011 -O check rubrik_node@localhost

TUNNEL FORWARDING
Run this command from Command Prompt (NOT MOBAXTERM)

sft ssh -L 8082:localhost:8082 supporttunnel04-colo --command


"/opt/rubrik/src/scripts/infra/tunnel/tunnel.py forward --tunnel_port 16434 --
local_port 8082 --node_port 443"

/opt/rubrik/src/scripts/dev/get_local_spray_token.py --username support$

Use the below link from Chrome

https://localhost:8082/web/bin/index.html#/welcome_support

Generate a key using the command below from the same command prompt

sft ssh -L 8083:localhost:8083 supporttunnel04-colo --command


"/opt/rubrik/src/scripts/infra/tunnel/tunnel.py forward --tunnel_port 24618 --
local_port 8083 --node_port 443"

sft ssh -L 8084:localhost:8084 supporttunnel04-colo --command


"/opt/rubrik/src/scripts/infra/tunnel/tunnel.py forward --tunnel_port 43194 --
local_port 8084 --node_port 443"

/opt/rubrik/src/scripts/dev/get_local_spray_token.py --username support$
