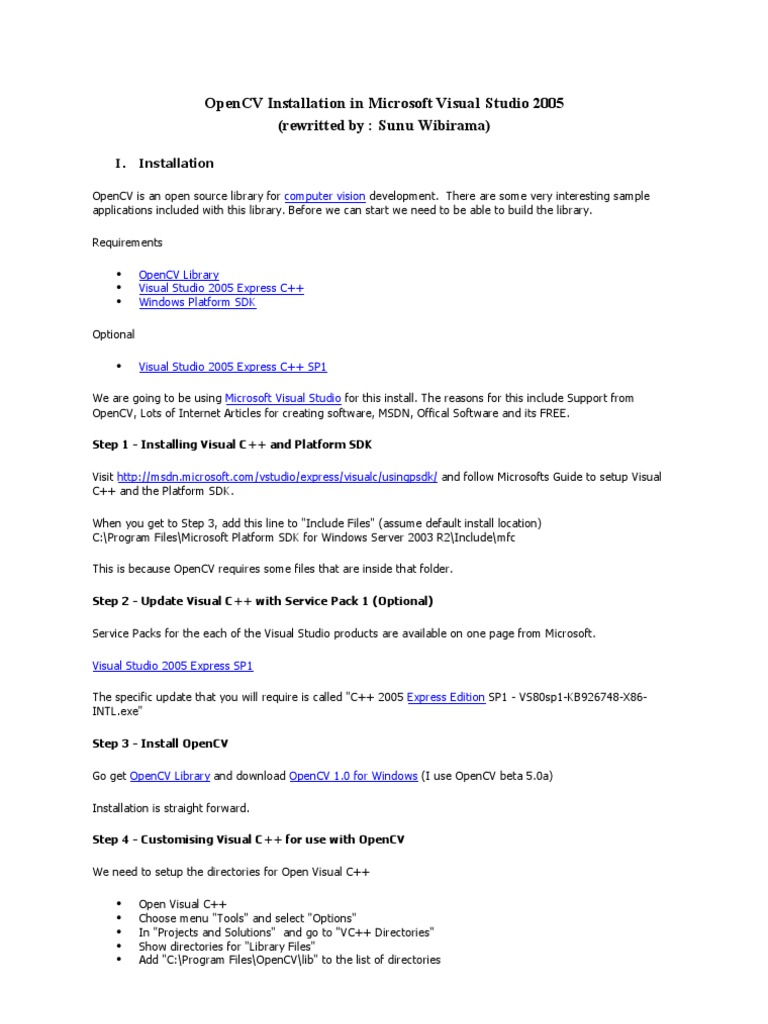

OpenCV Installation in Microsoft Visual Studio 2005

(rewritted by : Sunu Wibirama)

I. Installation

OpenCV is an open source library for computer vision development. There are some very interesting sample
applications included with this library. Before we can start we need to be able to build the library.

Requirements

• OpenCV Library
• Visual Studio 2005 Express C++
• Windows Platform SDK

Optional

• Visual Studio 2005 Express C++ SP1

We are going to be using Microsoft Visual Studio for this install. The reasons for this include Support from
OpenCV, Lots of Internet Articles for creating software, MSDN, Offical Software and its FREE.

Step 1 - Installing Visual C++ and Platform SDK

Visit http://msdn.microsoft.com/vstudio/express/visualc/usingpsdk/ and follow Microsofts Guide to setup Visual


C++ and the Platform SDK.

When you get to Step 3, add this line to "Include Files" (assume default install ___location)
C:\Program Files\Microsoft Platform SDK for Windows Server 2003 R2\Include\mfc

This is because OpenCV requires some files that are inside that folder.

Step 2 - Update Visual C++ with Service Pack 1 (Optional)

Service Packs for the each of the Visual Studio products are available on one page from Microsoft.

Visual Studio 2005 Express SP1

The specific update that you will require is called "C++ 2005 Express Edition SP1 - VS80sp1-KB926748-X86-
INTL.exe"

Step 3 - Install OpenCV

Go get OpenCV Library and download OpenCV 1.0 for Windows (I use OpenCV beta 5.0a)

Installation is straight forward.

Step 4 - Customising Visual C++ for use with OpenCV

We need to setup the directories for Open Visual C++

• Open Visual C++


• Choose menu "Tools" and select "Options"
• In "Projects and Solutions" and go to "VC++ Directories"
• Show directories for "Library Files"
• Add "C:\Program Files\OpenCV\lib" to the list of directories
Step 5 - Open "OpenCV Workspace .NET 2005"

In the start menu a folder called "Open CV" was created when you installed OpenCV.

Inside the folder "OpenCV" there is a shortcut called "OpenCV Workspace .NET 2005"

Open "OpenCV Workspace .NET 2005"

This will load OpenCV solution within Visual C++

There is one last thing you need to do, to be able to compile OpenCV.

• Choose menu "Build" and Select "Configuration Manager"


• Change "Active solution configuration" to either "Debug" or "Release"

Step 6 - Build

Now that everything is installed and setup; building OpenCV should be a breeze.

• Choose menu "Build" and Select "Build Solution"

Building OpenCV can take anywhere from a few minutes to an hour.


When I built OpenCV it took about 10 minutes.

II. Creating Application at A Glance

Now, we will try to create application based on OpenCV at a glance. First, we will try to create console
application (without Graphical User Interface / GUI)

1. Create new console project by following the picture below


2. Right click and add new file

3. Set additional properties to include OpenCV directory and library, follow these steps :
..\..\cvaux\include\
..\..\cxcore\include\
..\..\cv\include\
..\..\otherlibs\highgui\
..\..\otherlibs\cvcam\include\

“..\..\lib\cv.lib“
“..\..\lib\cvaux.lib“
“..\..\lib\cxcore.lib“
“..\..\lib\cvcam.lib“
“..\..\lib\highgui.lib"

Try to write some simple syntax and compile it (check whether it works or not) :
cvNamedWindow(“test”,1);

How about application with GUI ? We will show you in the next section
III. OpenCV Application with Graphical User Interface

1. Click File >> New >> Project >> Visual C++ >> Windows Forms Application (don’t forget to enter
your application’s name)

2. Set additional directories and libraries, as you do in creating console application (step 3 previous
section).

3. The main important thing, set your general properties of Common Language Runtime Support. To do
this, select your project at the left windows, right click >> Properties >> Configuration Properties >>
General >> Common Language Runtime Support
Change from “Pure MSIL Common Language Runtime Support” to
“Common Language Runtime Support” …….and happy coding !
